The following explains the steps that happen automatically when the expressInstall function is executed. The Local - No Docker, Local - With Docker, Local - Docker Compose, and Host OpenZiti Anywhere quickstarts all run the expressInstall function. Each version varies slightly. This page will focus on the Local - No Docker quickstart.

The General Process

  1. Obtain the OpenZiti binary
  2. Create a PKI
  3. Create a Controller configuration
  4. Initialize the Controller
  5. Start the Controller
  6. Create a Router configuration
  7. Create a Router entity on the network (via the Controller)
  8. Enroll the Router previously created
  9. Add default edge router and Service edge router policies.

General Environment Setup

Obtain the OpenZiti Binary

The expressInstall function will call getZiti to obtain the Ziti binary. The getZiti function detects your OS type and architecture to craft the specific download URL for the binary. The binary is downloaded, and extracted to a directory within the network directory.

note

The quickstart script isn't limited to expressInstall. You can source the ziti-cli-function.sh file and run any of the many helpful functions. For example, you can run getZiti to get the latest version of OpenZiti downloaded quickly and easily.

Create a PKI

As part of the expressInstall a PKI is generated automatically. The PKI consists of a root CA, four intermediate CAs; one for each of the controller's config sections (control, edge/API, identity) and an arbitrary CA. Additionally, an extra intermediate CA is created on the signing cert chain to demonstrate that arbitrary cert chain lengths are acceptable.

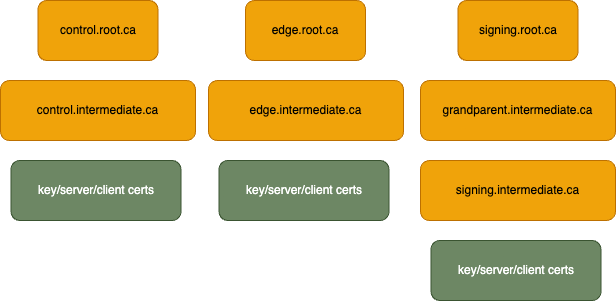

Once the CAs are generated, a key, server cert, and client cert are generated for each of the controller's config sections. The following image represents the overall PKI architecture.


Update the CA Bundle

The latest tunnelers require full and complete PKIs, not arbitrary trust anchors. Therefore, the root and intermediate CAs must be added to the CA bundle. Additionally, the file is copied for the Edge/API CA bundle.

cat "${ZITI_PKI}/my.root.ca/certs/my.root.ca.cert" > "${ZITI_PKI}/${ZITI_NETWORK}-network-components/cas.pem"
cat "${ZITI_PKI}/my.root.ca/certs/intermediate.from.external.ca.cert" >> "${ZITI_PKI}/${ZITI_NETWORK}-network-components/cas.pem"
cp "${ZITI_PKI}/${ZITI_NETWORK}-network-components/cas.pem" "${ZITI_PKI}/${ZITI_NETWORK}-edge/edge.cas.pem"

Controller Creation and Configuration

A controller configuration file is generated using the OpenZiti CLI binary. After the configuration is created, the controller is initialized. The process of initialization also initializes the database.

The controller is then started and the quickstart waits for the controller to finish starting up before continuing as the controller is necessary to create the edge router which happens in the next steps.

Default Policies

Two policies are generated to simplify the process of getting started with the network. An Edge Router Policy is created to allow all identities to connect to a router with a #public attribute. The router created during the expressInstall is populated with this attribute. A Service edge router policy is also created, allowing all services to use routers with the #public attribute.

Router Creating and Configuration

Just as with the controller, a config file is generated for the router. The router also needs to be created through the controller. This will generate a one-time token (OTT) to be used during router enrollment.

The router is then enrolled using the router configuration along with the router's OTT.

Customization

The quickstart offers numerous environment variables for use in customizing your unique situation. Here is a list of the most commonly used environment variables and their descriptions.

By default, the quickstart PKI is set up with 127.0.0.1 as the default IP. The *_IP_OVERRIDE variables allow you to add an IP the PKI will be valid for.

  • ZITI_CTRL_EDGE_IP_OVERRIDE an additional IP for the controller. This value is added to the PKI SANs IP field for the controller's edge PKI trust chain.
  • ZITI_ROUTER_IP_OVERRIDE is a custom IP for the router.

Here are a few more common variables.

  • ZITI_CTRL_EDGE_ADVERTISED_ADDRESS is the valid name for the Controller address used in the PKI.
  • ZITI_ROUTER_ADVERTISED_ADDRESS is the advertised address of the router. This defaults to the value in EXTERNAL_DNS if set. Otherwise, the value in EXTERNAL_IP is used.
  • ZITI_CTRL_ADVERTISED_PORT is the port used for the Controller's control plane address.
  • ZITI_CTRL_EDGE_ADVERTISED_PORT is the port used for the Controller's Edge/API plane address.
  • ZITI_ROUTER_PORT is the port used for the Router's advertised address.

The following are PKI related customization variables

PKI Generation Only Happens Once

It is extremely important that quickstart has the relevant information to set up your PKI. This generation is only performed once so, if it is incorrect, the entire PKI needs to be regenerated.

DNS is Preferred Over IP

It is highly recommended to use DNS over IP as this is a one time setup, if your IP changes, then your PKI is rendered useless.

export EXTERNAL_DNS="acme.example.com"
export EXTERNAL_IP="$(curl -s eth0.me)"
export ZITI_CTRL_EDGE_IP_OVERRIDE="${EXTERNAL_IP}"
export ZITI_ROUTER_IP_OVERRIDE="${EXTERNAL_IP}"
export ZITI_CTRL_EDGE_ADVERTISED_ADDRESS="${EXTERNAL_DNS:-${EXTERNAL_IP}}"
export ZITI_ROUTER_ADVERTISED_ADDRESS="${EXTERNAL_DNS:-${EXTERNAL_IP}}"
export ZITI_CTRL_ADVERTISED_PORT=8440
export ZITI_CTRL_EDGE_ADVERTISED_PORT=8441
export ZITI_ROUTER_PORT=8442
